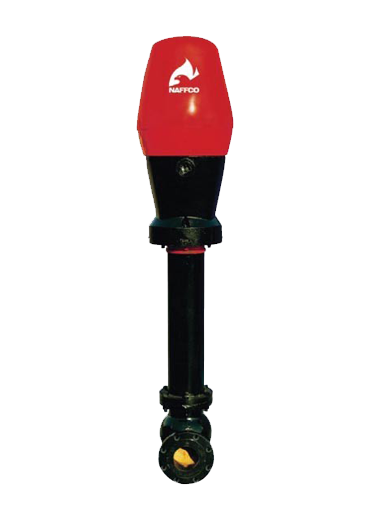

Dry Type Fire Hydrant
3-Way Pedestral Hydrant
Features
Designed as per AWWA C502, which applies for the wall thickness , loss of head and hose connection plugs. Simple rugged construction and easy to maintain. Break away design to prevent accidents to the hydrants, where only the upper part of the flange will be broken upon impact
The 3-way pedestal dry barrrel design eliminates damage to the hydrant caused by freezing or corrosion of the upper part. Externally sand blasted for smooth finish, painted red with electrostatic powder coating on the section above ground and double coated with black bituminous paint on the section below the ground.

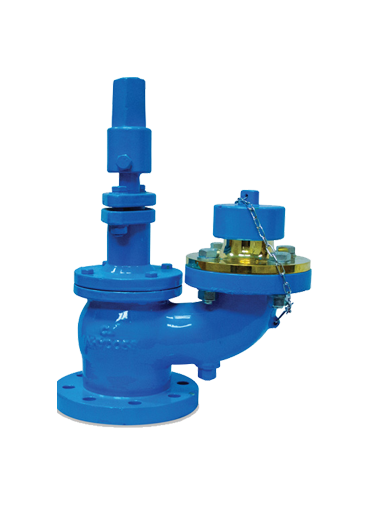

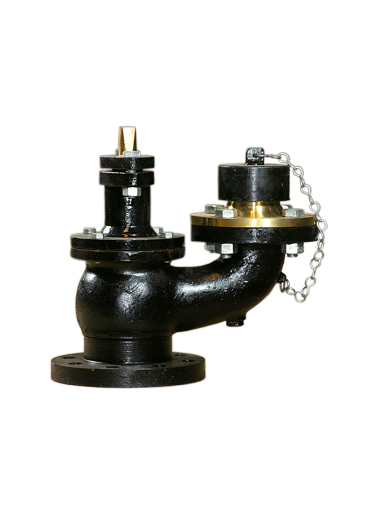

Under Ground Hydrant
Features
Model
Type
GHYD 058
Screw down Type
Inlet
3" Flanged
Outlet
2 1/2 BSRT
Test Pressure
24 Bar

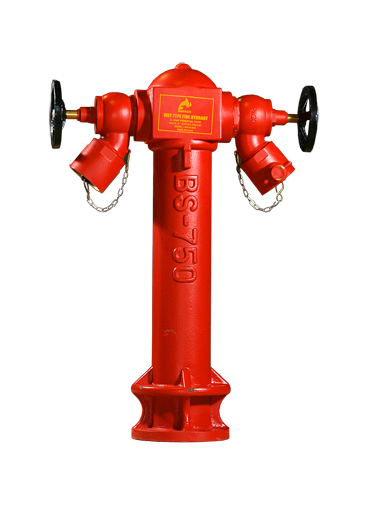

Wet Type Hydrant

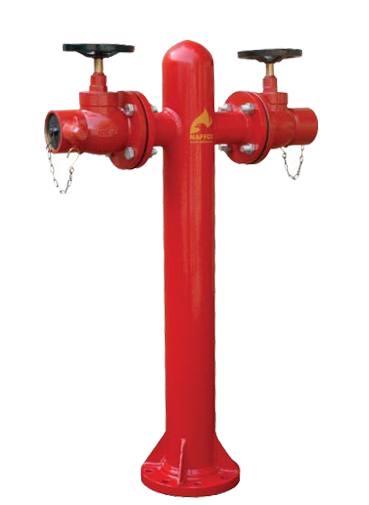

2-Way Pedestral Hydrants
Features
Model
Type
GHYD 059
Plain outlet
GHYD 060
Controllable Outlet
Spec, Body
Grey Cast Iron to BS 1452
Outlet
2 1/2" dia
Inlet
4" Dia Flanged
Test Pressure
24 bar
